Nothing Stacks Up To EPYC™

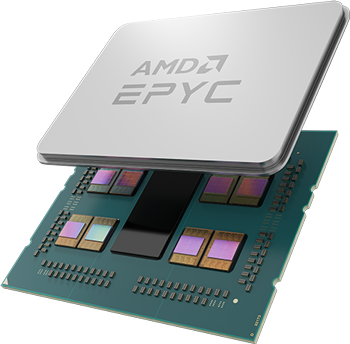

AMD EPYC 7003 Series Processors with AMD 3D V-Cache™ technology are raising the bar once more for breakthrough performance on targeted technical computing workloads like Electronic Design Automation, Computational Fluid Dynamics, and Finite Element Analysis software and solutions. Delivering breakthrough performance per core and performance per watt, the Zen 3 architecture maintains leadership in number of cores – up to 64, amount of L3 cache – 768MB, and 128 PCIe 4.0 lanes, while maintaining socket compatibility with existing 3rd Gen AMD EPYC platforms.
GIGABYTE S472-Z30 (rev. A00) - 6NS472Z30MR-00
Hardware-level root of trust AMD EPYC™ 7003 processors with AMD 3D V-Cache™ Technology AMD EPYC™ 7003 series processors Single processor, LGA 4094 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs 2 x 1Gb/s LAN ports (Intel® I350-AM2) 1 x Dedicated management port 24 x 3.5" SATA/SAS hot-swap bays 4 x 2.5" NVMe/SATA/SAS hybrid hot-swap bays 8 x 2.5" NVMe hot-swap bays 12 x 2.5" SATA/SAS hot-swap bays
We also offer six months of free collocation in our TIER III data center.
Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.
| Product code | 202.166105 |
|---|---|
| Part number | 6NS472Z30MR-00-A |
| Manufacturer | GIGABYTE |
| Availability | On demand |
| Warranty | 24 months |
| Weight | 18.9 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
Architecture for Modern Data Centers
GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.
Easy, Flexible & Powerful Storage Deployment
The S472-Z30 offers the following advantages to your storage deployment:
- x86 architecture means compatibility with a large variety of SDS (Software Defined Storage) platforms & applications
- 24 x 3.5” SATA/SAS, 12 x 2.5” SATA/SAS, 4 x 2.5” SATA/SAS/NVMe hybrid and 8 x 2.5” NVMe drive bays for large scale out capacity, over 900TB raw capacity per server
- Rear 2 x 2.5” SATA drive bays for OS disks
GIGABYTE has also validated and created reference architectures for our products with various open source software defined storage systems to help make your deployment even faster and easier.
Power Efficiency
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
-
- Processor
CPU AMD EPYC™ 7003 Series Processors Socket SP3 Chipset System on Chip Cores / Threads Up to 64 cores, 128 threads - System memory
Memory maximum Capacity RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supportedMemory Slots 16 x DIMM slots Memory Type DDR4 memory supported only Memory speed Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC- Input/output
Network 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LANUSB 5 x USB 3.0 Video 1 x VGA
-
- Expansion slots
PCIe Slot_6: PCIe x16 (Gen4 x16) low-profile slot, occupied by CNV3134 - 4 x Gen4 NVMe HBA
Slot_5: PCIe x16 (Gen4 x8) low-profile slot
Slot_4: PCIe x16 (Gen4 x16) low-profile slot, occupied by CNV3134 - 4 x Gen4 NVMe HBA
Slot_3: PCIe x16 (Gen4 x16) low-profile slot
Slot_2: PCIe x8 (Gen3 x0 or x8) low-profile slot
Slot_1: PCIe x16 (Gen3 x16 or x8) low-profile slot, shared with slot_2OCP 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
Supports NCSI function- Storage
Drive Bays (Front) 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 2.5" Gen4 NVMe hot-swappable bays
12 x 2.5" SATA/SAS hot-swappable baysDrive Bays (Rear) 2 x 2.5" SATA hot-swappable bays M.2 2x M-key, PCIe Gen4x4, 2242/2260/2280 - Power supply
Certification 80 PLUS Platinum Power 1600W QTY 1+1
- Parts included
| Name | QTY | Part Number | |
|---|---|---|---|
| Barebone package | GIGABYTE S472-Z30 | 1 | 6NS472Z30MR-00-A |
| Motherboard | Gigabyte MZ32-AR1 | 1 | 9MZ32AR1NR-00 |
| CPU heatsink | CPU heatsink | 1 | 25ST1-15320E-J1R |
| 2-Section Rail kit | 2-Section Rail kit | 1 | 25HB2-A66123-C0R |
| Backplane board | Backplane board | 1 | CBP20O7: 9CBP20O7NR-00 |
| Backplane board | 1 | CBPD020: 9CBPD020NR-00 | |
| Backplane board | 1 | CBPD2C0: 9CBPD2C0NR-00 | |
| Backplane board | 1 | CBPD2C1: 9CBPD2C1NR-00 | |
| Power supply | Power supply | 1 | 25EP0-21600B-F3S |
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 697 |
| CPU manufacturer | AMD |
| Socket | SP3 |
| HDD disks | 50 |
| 2.5" Drive bays | 26 |
| 3.5" Drive bays | 24 |
| NVMe slots | 12 |
| Total amount of PCIe | 6 |
| OCP/AIOM | 1 |
| Power (W) | 1600 |
| Efficiency certification | Platinum |
